LED Indoor Video Wall, QH Series
LED Indoor Video Wall - QH Series
.avif)
.avif)
Product Features
.avif)
Independent Cabinet Frame for Precise LED Video Wall Alignment
The QH Series features an independent cabinet frame system that enables precise panel alignment during installation and simplifies ongoing maintenance. The independent frame allows individual panels to be removed and replaced without disturbing adjacent panels, reducing maintenance downtime and simplifying the process of panel servicing in installed video wall configurations.
Fine Pixel Pitch for Premium Image Quality
Available in pixel pitches from P1.5 to P2.5, the QH Series delivers the fine pixel density required for close-viewing-distance applications in premium retail, corporate reception areas, and hospitality environments. At these pixel pitches, the display produces smooth, detailed imagery with no visible pixel structure, even at viewing distances of less than one metre.
High Brightness for Demanding Lighting Environments
The QH Series delivers high brightness levels that maintain vivid, legible content in brightly lit retail and corporate environments. Automatic brightness adjustment ensures optimal display performance throughout the day, while advanced thermal management maintains consistent brightness and colour accuracy over the full operational life of the display.
Seamless Modular Tiling for Any Configuration
The QH Series modular cabinet design enables seamless tiling to create video walls of virtually any size and aspect ratio. Each cabinet tiles precisely with its neighbours, eliminating visible seams and creating a continuous display surface. This scalability makes the QH Series suitable for everything from compact 2x2 configurations to large-format video walls spanning entire retail facades.
.avif)
Applications for QH Series LED Video Walls

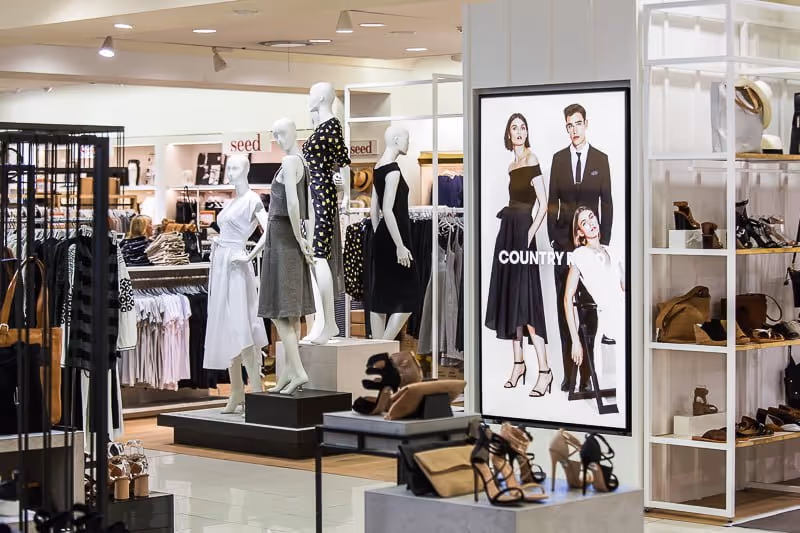

The QH Series is deployed in flagship retail stores and luxury brand environments, corporate reception areas and boardrooms, hotel lobbies and premium hospitality venues, broadcast studios and media environments, museum and gallery installations, and any environment requiring fine-pitch LED quality with the installation precision and maintenance accessibility of an independent cabinet frame system.
iCOOL Heat Dissipation for Reliable LED Video Walls
Our iCOOL heat dissipation system ensures optimal thermal management for LED video walls, even under continuous operation. With a thermal conductivity of 237 W/m-°C, the system efficiently transfers and disperses heat, preventing overheating and maintaining consistent performance. This advanced cooling system is essential for environments that require reliable, long-lasting operation.
The iCOOL system features a zigzag special pattern design that maximizes the surface area for heat exchange, allowing cool air to circulate more effectively around the display. This unique design enhances the efficiency of heat dissipation, protecting sensitive components and ensuring that your LED video wall performs flawlessly, even during extended use.
Gallery
Specifications
| Pixel Pitch | 1.25mm |
| Pixel Density (px/m²) | 640,000 |
| Cabinet Resolution | 512×384 |
| Cabinet Size (mm) | 640×480×74 |
| Cabinet Weight (kg) | 7.7 |
| Brightness (nits) | 600–1,200 |
| Gray Scale (bit) | 12–16 |
| Refresh Rate (Hz) | ≥1,920 (≥3,840 high) |
| Max Power (W/m²) | ≤490 |
| Avg Power (W/m²) | ≤163 |
| Protection | Front IP31 / Rear IP41 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -10 ~ +50 |
| Pixel Pitch | 1.538mm |
| Pixel Density (px/m²) | 422,500 |
| Cabinet Resolution | 416×312 |
| Cabinet Size (mm) | 640×480×74 |
| Cabinet Weight (kg) | 7.7 |
| Brightness (nits) | 600–1,200 |
| Gray Scale (bit) | 12–16 |
| Refresh Rate (Hz) | ≥1,920 (≥3,840 high) |
| Max Power (W/m²) | ≤490 |
| Avg Power (W/m²) | ≤163 |
| Protection | Front IP31 / Rear IP41 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -10 ~ +50 |
| Pixel Pitch | 1.86mm |
| Pixel Density (px/m²) | 288,906 |
| Cabinet Resolution | 344×258 |
| Cabinet Size (mm) | 640×480×74 |
| Cabinet Weight (kg) | 7.7 |
| Brightness (nits) | 600–1,200 |
| Gray Scale (bit) | 12–16 |
| Refresh Rate (Hz) | ≥1,920 (≥3,840 high) |
| Max Power (W/m²) | ≤490 |
| Avg Power (W/m²) | ≤163 |
| Protection | Front IP31 / Rear IP41 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -10 ~ +50 |
| Pixel Pitch | 2.0mm |
| Pixel Density (px/m²) | 250,000 |
| Cabinet Resolution | 320×240 |
| Cabinet Size (mm) | 640×480×74 |
| Cabinet Weight (kg) | 7.7 |
| Brightness (nits) | 600–1,200 |
| Gray Scale (bit) | 12–16 |
| Refresh Rate (Hz) | ≥1,920 (≥3,840 high) |
| Max Power (W/m²) | ≤490 |
| Avg Power (W/m²) | ≤163 |
| Protection | Front IP31 / Rear IP41 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -10 ~ +50 |
