Product Features
Structure Characteristics of Flexible LED Displays

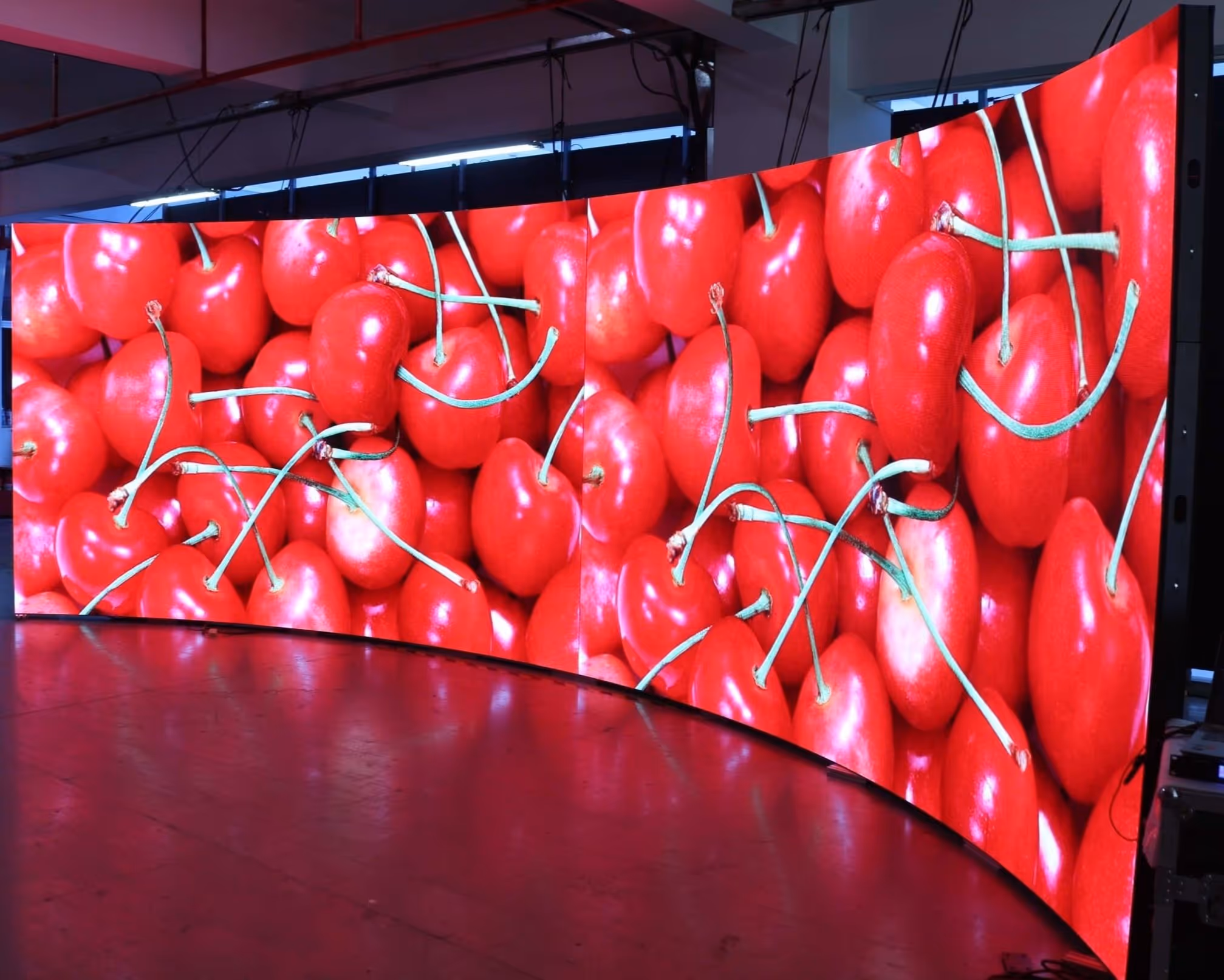

onQ's flexible LED displays are built on a flexible PCB substrate that enables bending radii from as tight as 500mm, allowing the display to conform to curved walls, cylindrical columns, concave and convex surfaces, and custom architectural forms. The flexible module system maintains precise pixel alignment across curved surfaces, ensuring consistent image quality regardless of the installation geometry.
High Refresh Rate for Smooth Video Content
onQ's flexible LED displays feature high refresh rates that ensure smooth, flicker-free video content even when captured by cameras or viewed under high-speed lighting conditions. This makes flexible LED displays suitable for broadcast and media environments, retail activations where content will be photographed or filmed, and any application where video quality is a priority.
Lightweight Construction for Architectural Integration
The flexible substrate and lightweight LED module construction of onQ's flexible displays significantly reduces the structural load compared to rigid LED panel systems, expanding the range of architectural environments where large-format LED displays can be installed. Lightweight flexible LED modules can be mounted on surfaces that would not support the weight of conventional rigid LED cabinets.
Creative Applications for Flexible LED Technology

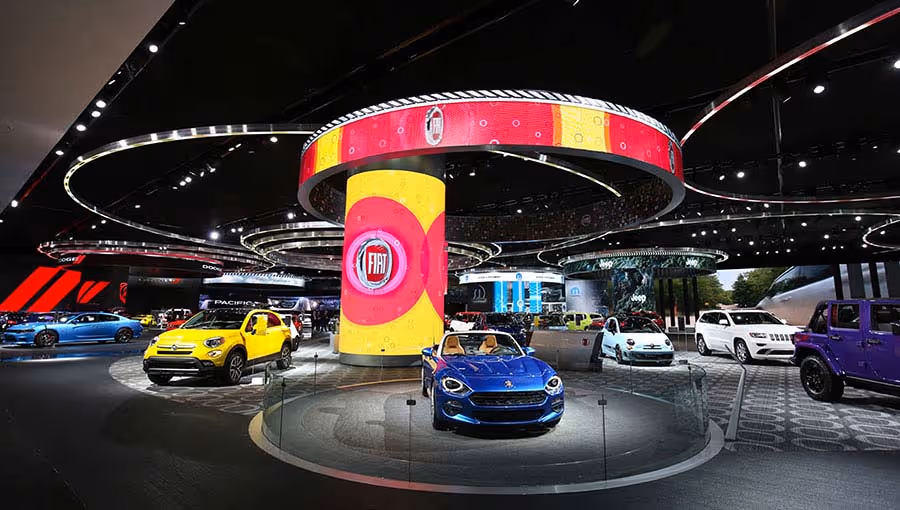

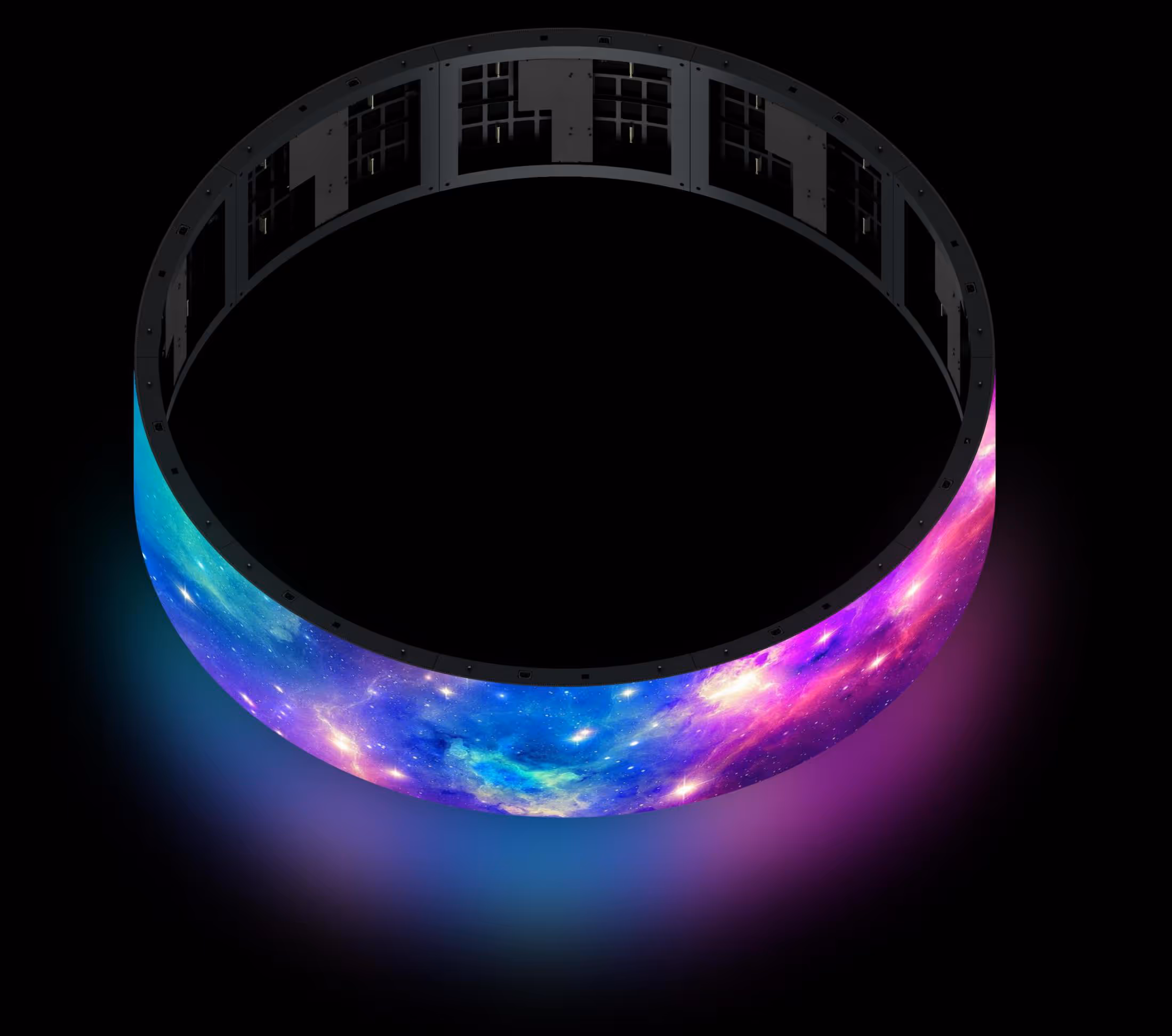

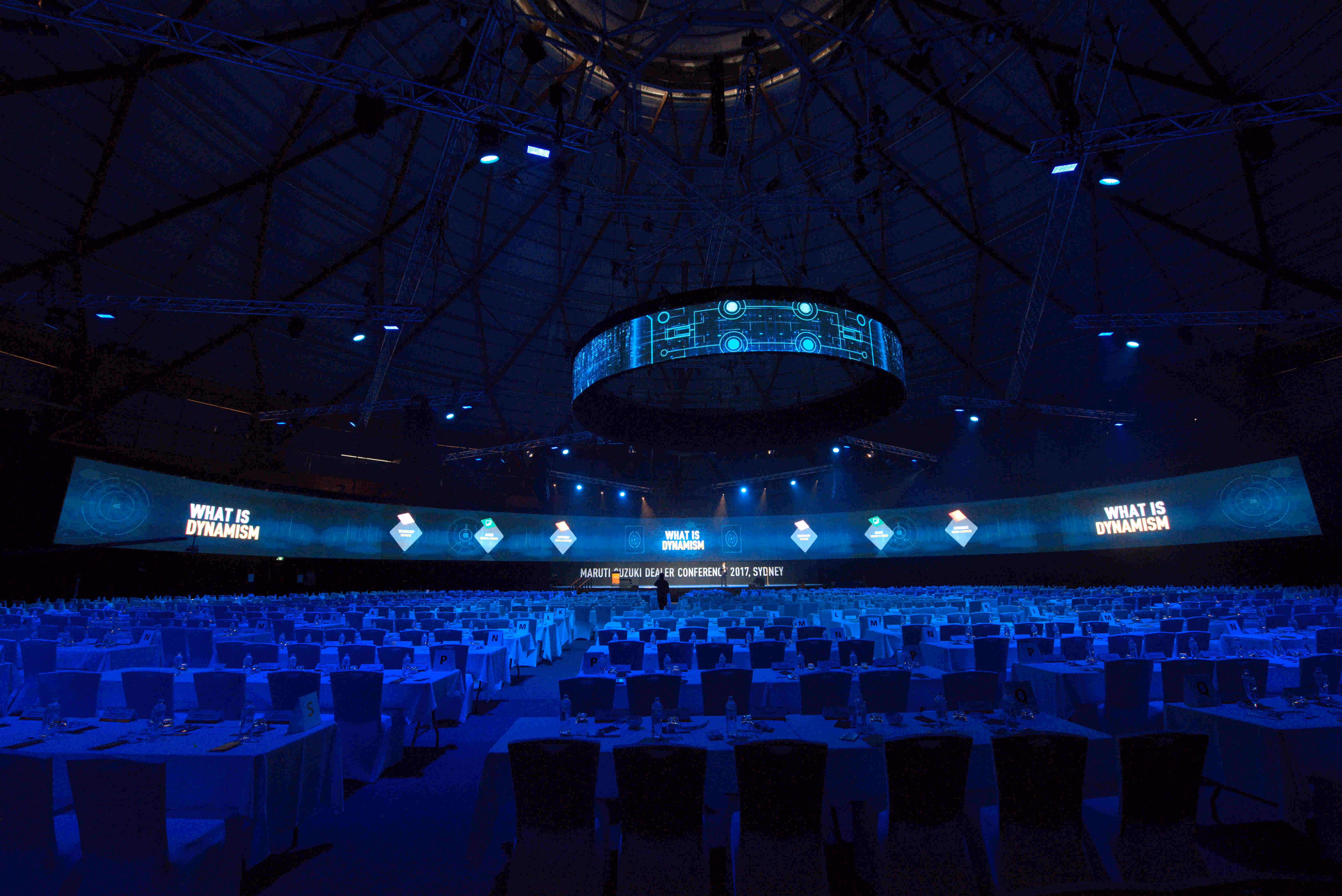

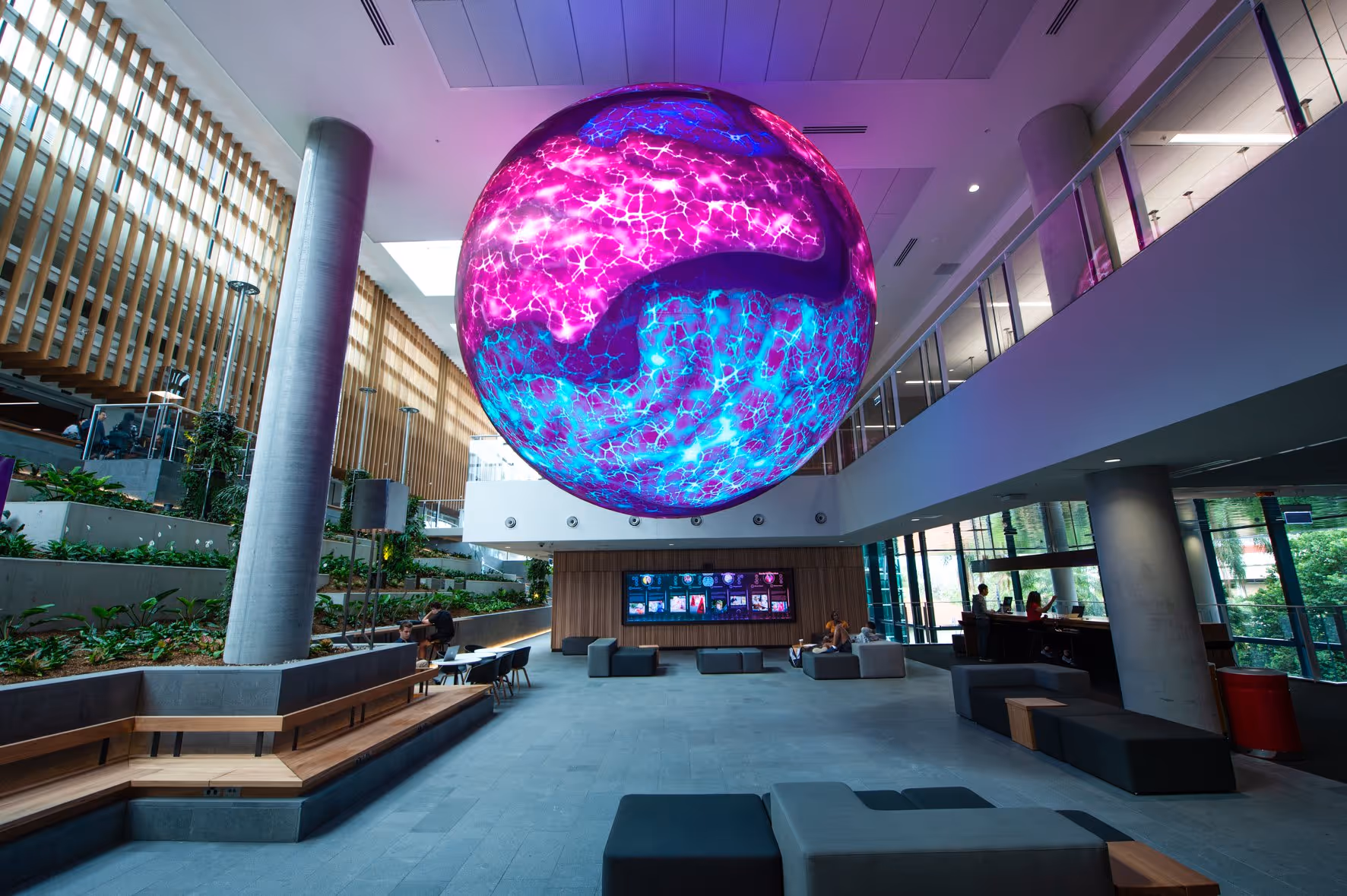

Flexible LED displays enable creative installations that are simply not possible with rigid display systems. Cylindrical LED columns for retail and hospitality environments, curved LED walls that follow architectural contours, concave LED ceilings for immersive brand experiences, and custom-shaped LED installations for events and exhibitions are all achievable with onQ's flexible LED display technology.
Seamless Integration with onQ CMS
onQ's flexible LED displays integrate with onQ CMS for remote content management, enabling real-time updates, dynamic scheduling, and centralised management of all flexible LED installations from a single platform. Content can be mapped to the specific geometry of each installation to ensure accurate, distortion-free presentation on curved and custom-shaped surfaces.
Applications for Flexible LED Displays

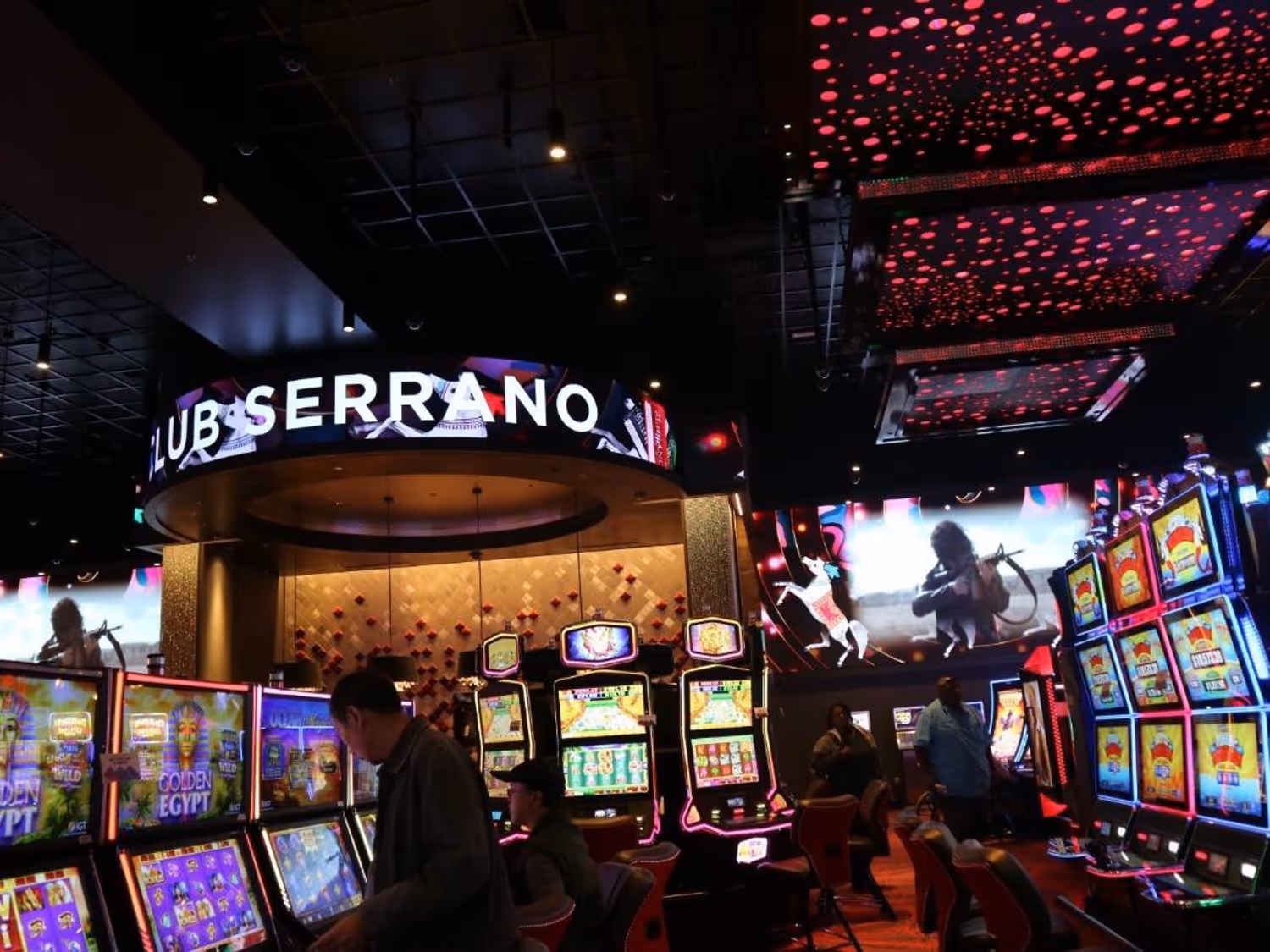

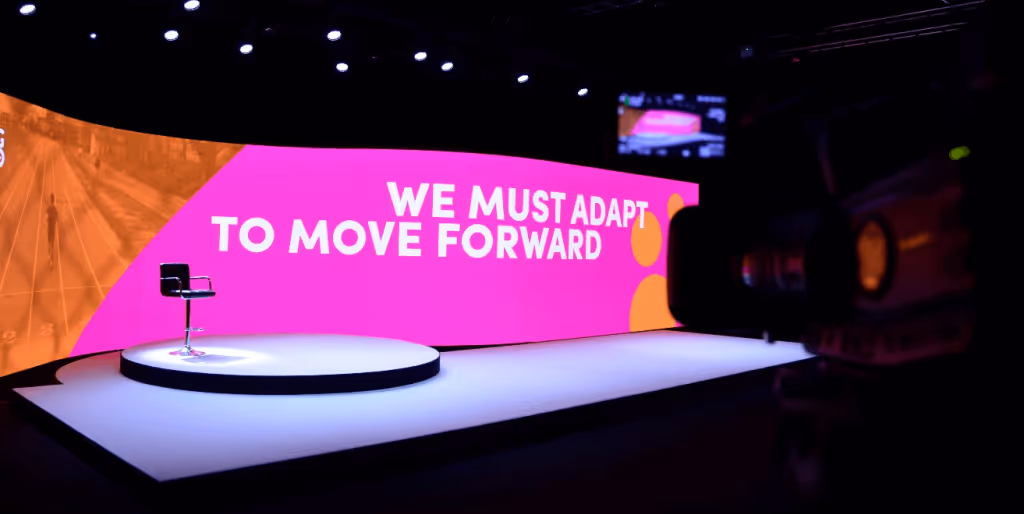

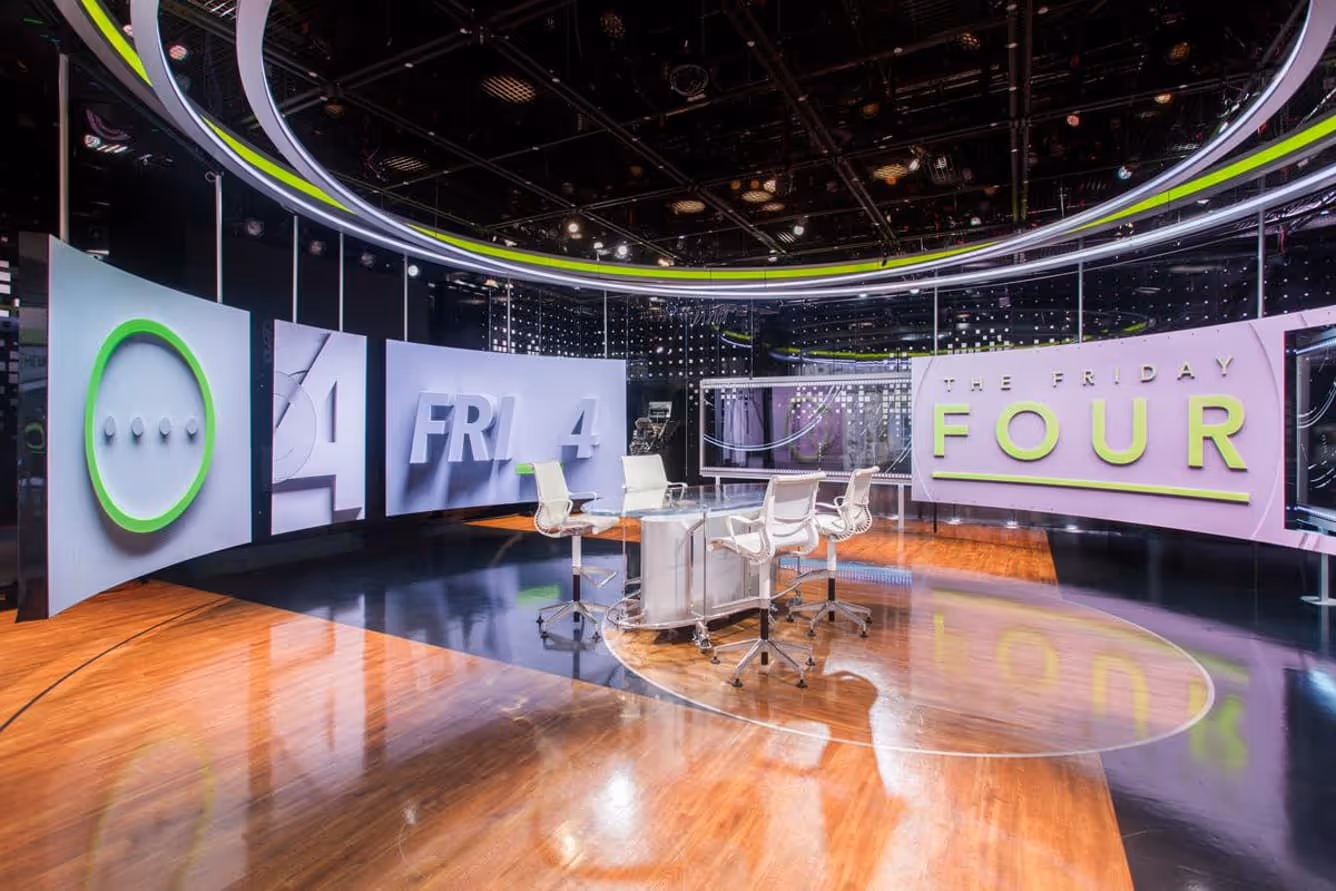

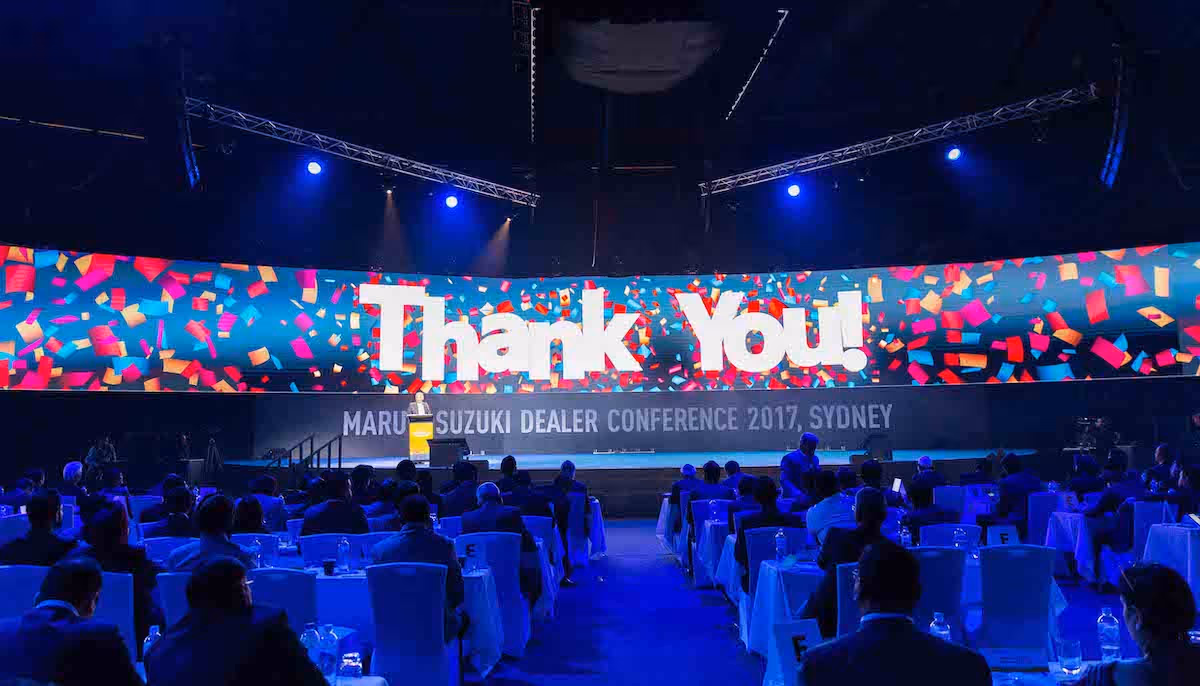

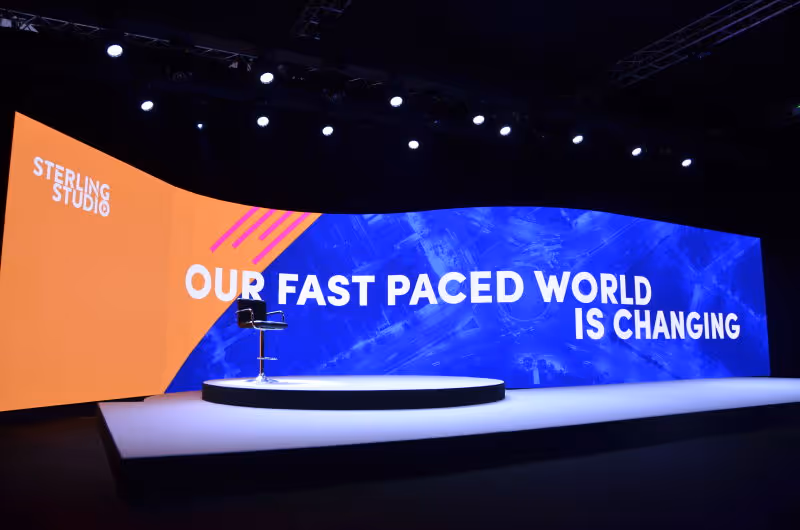

Flexible LED displays are deployed in flagship retail stores for curved wall and column installations, hotel lobbies and hospitality venues for architectural LED features, brand activation and experiential marketing environments, exhibition and event spaces for custom-shaped LED installations, broadcast studios for curved LED backdrops, and any environment where creative LED design is a priority.
Gallery
Specifications
| Pixel Configuration | SMD |
| Pixel Pitch (mm) | 1.25 |
| Module Resolution (W×H) | 256×192 |
| Module Size (mm) | 320×240×13 |
| Cabinet Resolution (W×H) | 512×384 |
| Cabinet Size (mm) | 640×480×72 |
| Pixel Density (pixel/m²) | 640,000 |
| Brightness (nits) | 600 |
| Contrast Ratio | 5000:1 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -20 ~ 40 |
| Storage Temp (°C) | -40 ~ 60 |
| Pixel Configuration | SMD |
| Pixel Pitch (mm) | 1.59 |
| Module Resolution (W×H) | 201×151 |
| Module Size (mm) | 320×240×13 |
| Cabinet Resolution (W×H) | 402×302 |
| Cabinet Size (mm) | 640×480×72 |
| Pixel Density (pixel/m²) | 394,384 |
| Brightness (nits) | 600 |
| Contrast Ratio | 5000:1 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -20 ~ 40 |
| Storage Temp (°C) | -40 ~ 60 |
| Pixel Configuration | SMD |
| Pixel Pitch (mm) | 1.88 |
| Module Resolution (W×H) | 170×128 |
| Module Size (mm) | 320×240×13 |
| Cabinet Resolution (W×H) | 340×256 |
| Cabinet Size (mm) | 640×480×72 |
| Pixel Density (pixel/m²) | 283,333 |
| Brightness (nits) | 600 |
| Contrast Ratio | 5000:1 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -20 ~ 40 |
| Storage Temp (°C) | -40 ~ 60 |
| Pixel Configuration | SMD |
| Pixel Pitch (mm) | 2.0 |
| Module Resolution (W×H) | 160×120 |
| Module Size (mm) | 320×240×13 |
| Cabinet Resolution (W×H) | 320×240 |
| Cabinet Size (mm) | 640×480×72 |
| Pixel Density (pixel/m²) | 250,000 |
| Brightness (nits) | 600 |
| Contrast Ratio | 5000:1 |
| Refresh Rate (Hz) | 3,840 |
| Lifetime (hrs) | 100,000 |
| Operating Temp (°C) | -20 ~ 40 |
| Storage Temp (°C) | -40 ~ 60 |
Complete the form to download our spec sheet and get full details about this product
