Transparent LED Adhesive Film
Transparent LED Film
Product Features
Apply LED Display Technology Directly to Existing Glass
In recent years, transparent LED adhesive film technology has made it possible to add dynamic digital display capability to existing glass surfaces without the structural modification, specialist mounting systems, and significant investment required by traditional LED display installations. onQ's transparent LED adhesive film adheres directly to standard glass surfaces, enabling retailers and property owners to add digital display capability to their existing windows and facades with minimal disruption and investment.
High Transparency for Natural Light and Interior Visibility
onQ's transparent LED adhesive film maintains high transparency levels that preserve natural light transmission and interior visibility through the glass surface. This transparency is essential for retail window applications where the display must not block the view of merchandise or the store interior, and for architectural glazing applications where the glass serves a functional role in admitting natural light to the building interior.
High-Brightness LED Content Visible in Ambient Light
Despite the transparent substrate, onQ's LED adhesive film delivers high-brightness LED content that is visible in ambient light conditions, including in retail environments with bright overhead lighting. The high-brightness LED modules are positioned to maximise luminance while maintaining the transparency of the film substrate, creating a display that is both visually impactful and architecturally unobtrusive.
Easy Installation on Existing Glass Surfaces
onQ's transparent LED adhesive film is designed for straightforward installation on existing glass surfaces by onQ's trained installation team. The adhesive application process requires no structural modification to the building or glass, and can typically be completed in a single day for standard retail window applications. This ease of installation significantly reduces the cost and disruption of adding digital display capability to existing buildings.
Applications for Transparent LED Adhesive Film

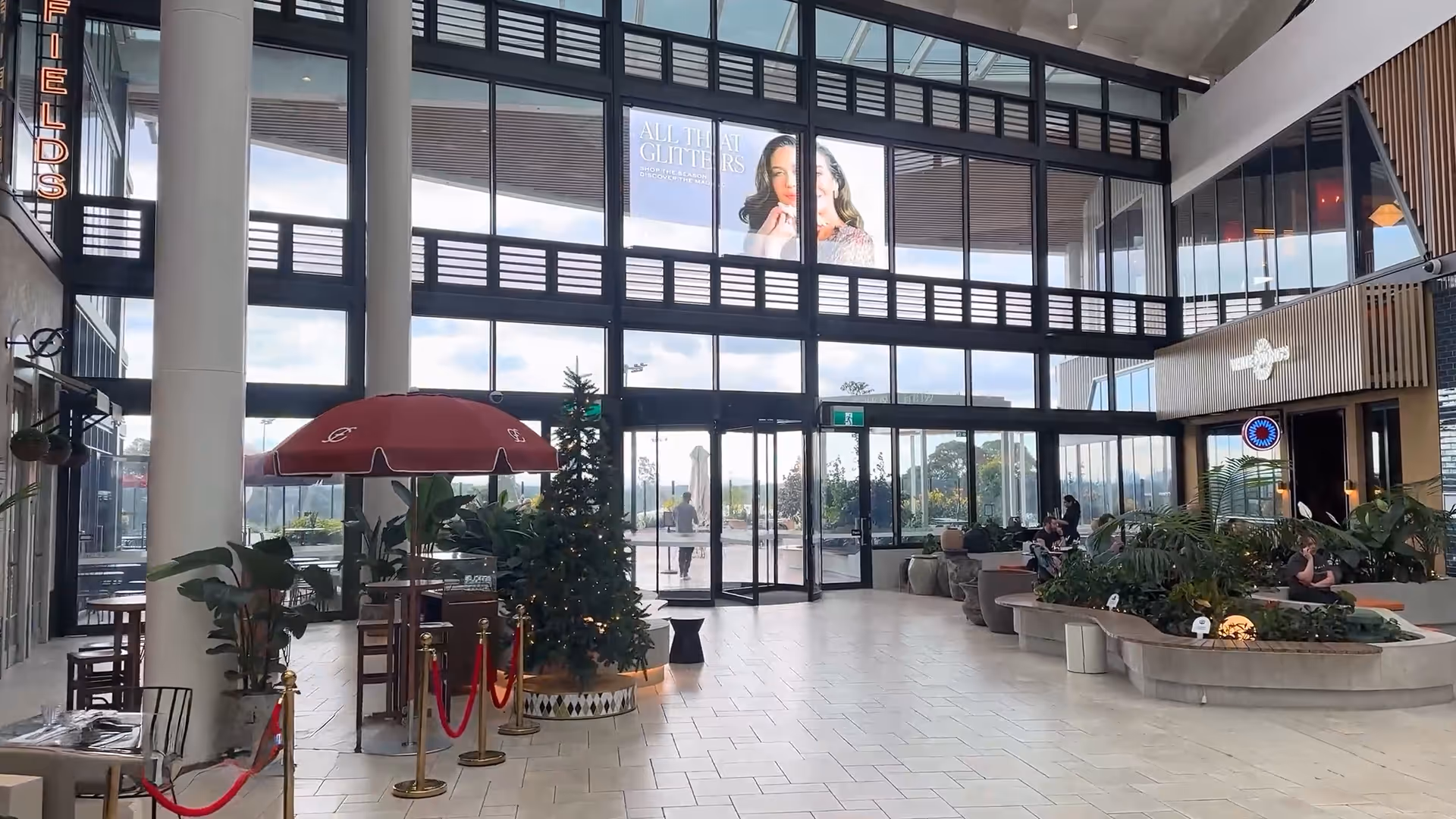

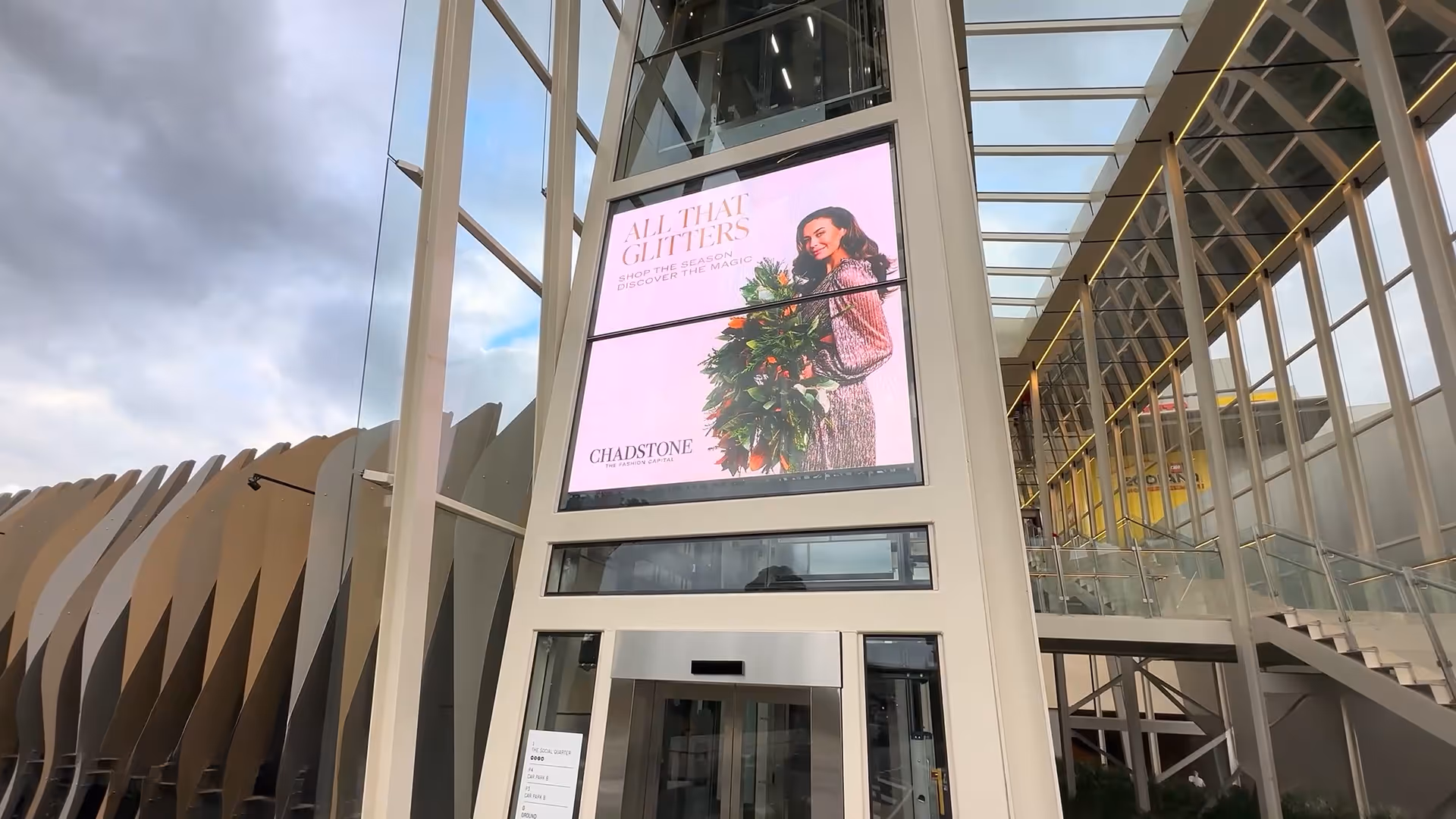

onQ's transparent LED adhesive film is deployed in retail store windows for promotional and brand content, shopping centre glass facades for tenant advertising, hotel and hospitality venue glass surfaces for guest information and event promotion, corporate office glass partitions for internal communications and brand display, and any glass surface where adding dynamic digital content without structural modification is the priority.
Easy Application for Versatile Use
Adhesive Transparent LED Film is engineered for quick, straightforward application directly onto glass surfaces, making it an ideal solution for both retail and architectural displays. Requiring no structural modifications, this film adheres smoothly to existing glass, eliminating the need for heavy installations or bulky mounts. Its ease of use allows for fast deployments in storefront windows, hotel lobbies, and even outdoor facades. This versatility supports both temporary and permanent installations, adapting effortlessly to the requirements of diverse environments and display objectives.
Gallery
.avif){kind=spacer}
.avif){kind=spacer}
.avif)
.avif)
Specifications
| Pixel Pitch (mm) | P2.5 / P2.5 |
| Pixel Density (dot/m²) | 160,000 |
| Transparency Rate | 70% |
| Display Size (mm) | 125×1000 per strip |
| Brightness (cd/m²) | ≥1,200 |
| Max Power (W/m²) | 800 |
| Avg Power (W/m²) | 300 |
| Lifespan (hrs) | ≥100,000 |
| Pixel Pitch (mm) | P3.91 / P3.91 |
| Pixel Density (dot/m²) | 65,536 |
| Transparency Rate | 80% |
| Display Size (mm) | 250×1000–1171 per strip |
| Brightness (cd/m²) | ≥3,000 |
| Max Power (W/m²) | 1,000 |
| Avg Power (W/m²) | 375 |
| Lifespan (hrs) | ≥100,000 |
| Pixel Pitch (mm) | P6.25 / P6.25 |
| Pixel Density (dot/m²) | 25,600 |
| Transparency Rate | 90% |
| Display Size (mm) | 250×1175–1475 per strip |
| Brightness (cd/m²) | ≥5,000 |
| Max Power (W/m²) | 1,000 |
| Avg Power (W/m²) | 375 |
| Lifespan (hrs) | ≥100,000 |
| Pixel Pitch (mm) | P10 / P10 |
| Pixel Density (dot/m²) | 10,000 |
| Transparency Rate | 85% |
| Display Size (mm) | 250×1000 per strip |
| Brightness (cd/m²) | ≥4,000 |
| Max Power (W/m²) | 1,000 |
| Avg Power (W/m²) | 375 |
| Lifespan (hrs) | ≥100,000 |
Complete the form to download our spec sheet and get full details about this product
